5 function electric hospital bed details

Ⅰ Main technical parameter

Ⅱ Feature

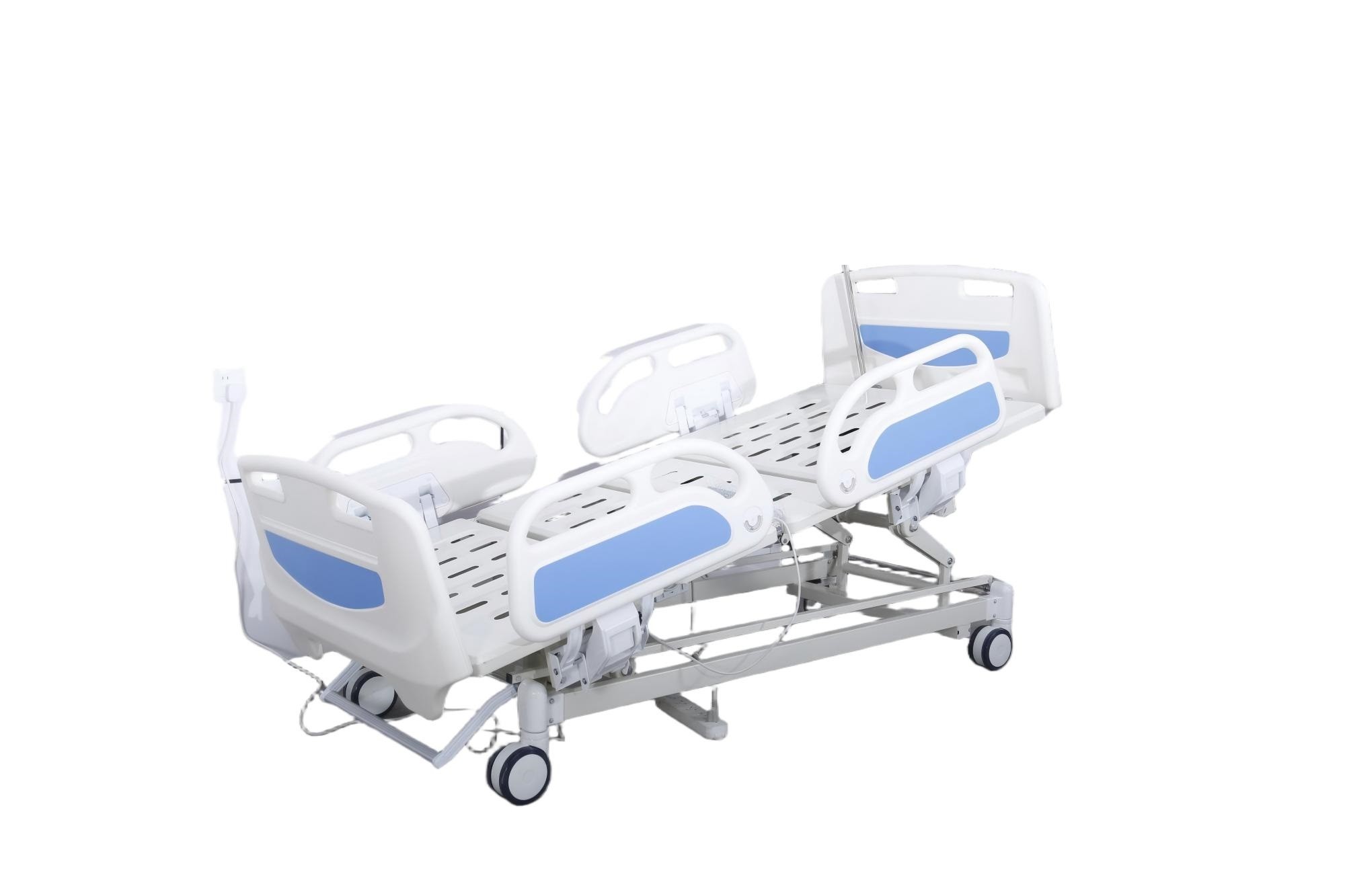

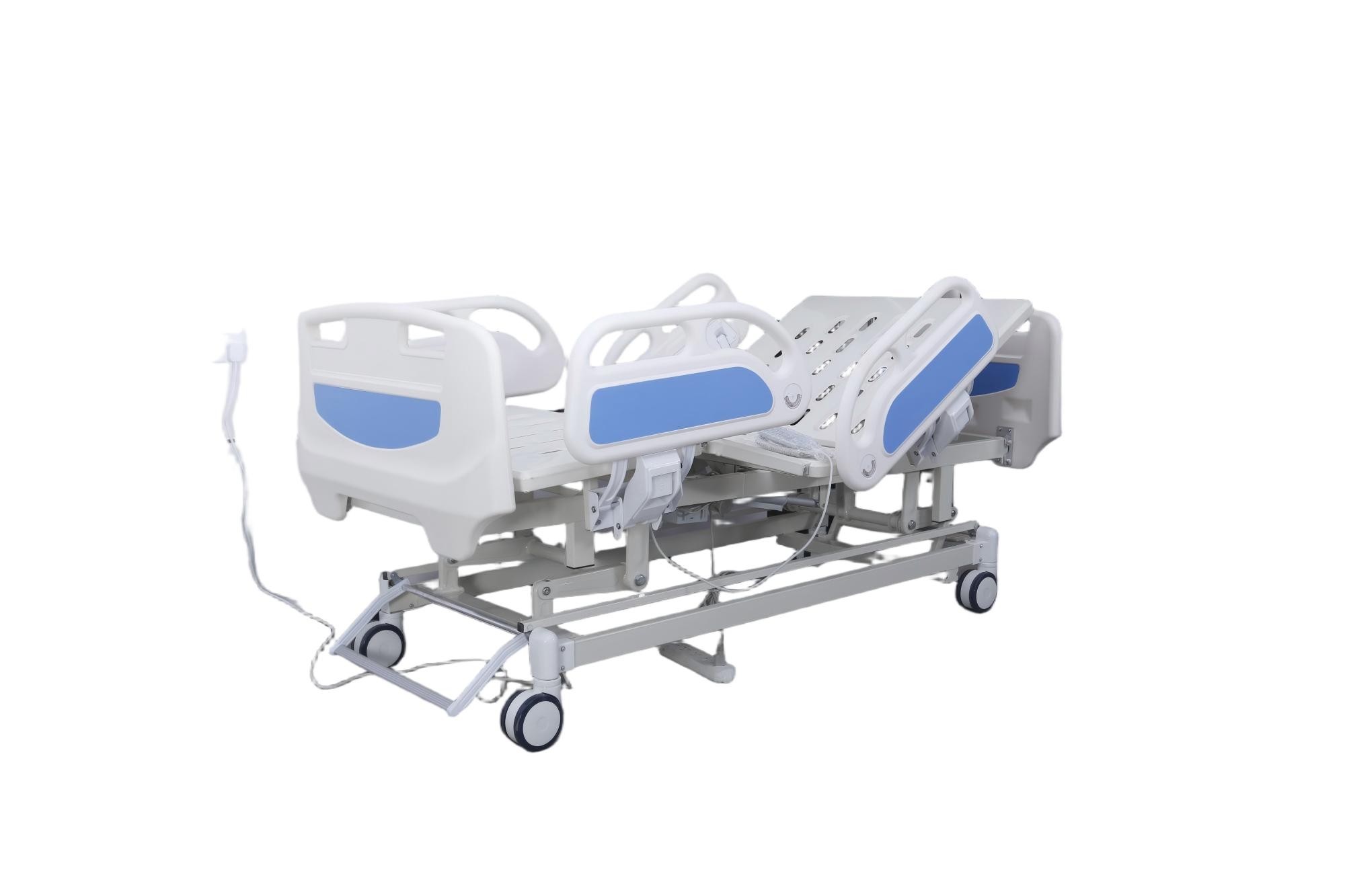

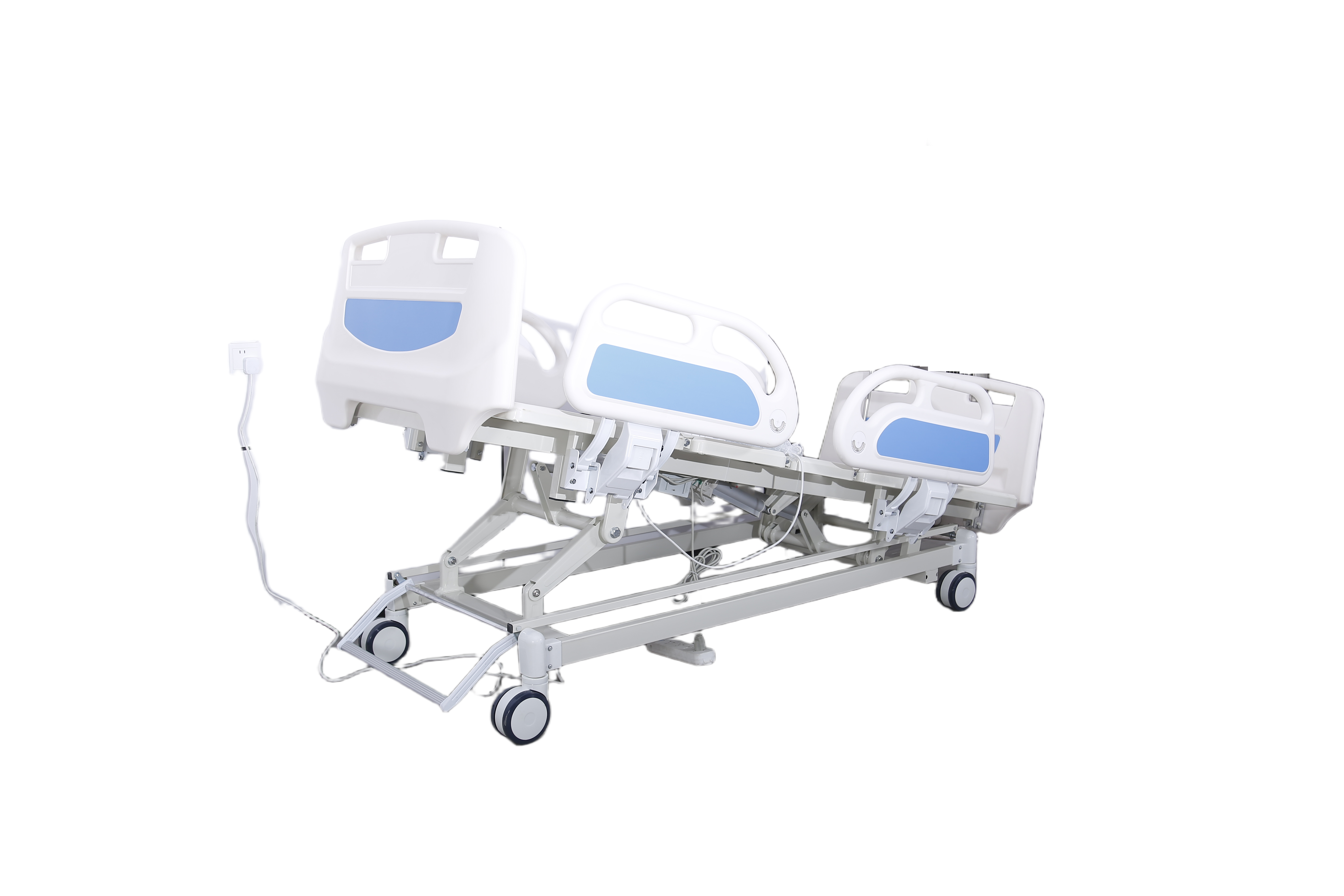

1. It is mainly composed of the bed body (bed frame, base, back panel, seat panel, thigh panel, foot panel), four ABS small guardrails, headboard component, tailboard component, central control casters, and electric drive device.

2.  The bed frame is treated with electrostatic spraying technology, resulting in a neat and smooth shape without sharp edges or burrs, making it easy to clean.

3. The bed frame is made of cold-rolled steel, with a specification of 60mm * 30mm square tube; the thickness is 1.3mm. It is formed through welding, grinding and electrostatic powder coating. The bed panel is made of high-quality carbon steel and is formed by overall stamping, which is elegant, practical and durable.

4. The ABS bed head and tail panels are injection-molded in one piece, with an arc-shaped design. They are easy to disassemble and convenient for cleaning and disinfection. The bed head frame is made of steel welded structure, which is strong and equipped with plastic corner guards to prevent damage to the bed body when the mobile bed is moved; The bed tail panel is equipped with a slot for inserting patient information cards.

5. The driving system adopts one control and four super quiet electric push rods, with the noise level of the push rods being less than 45 dB. It has functions such as lifting the back, lowering the back, raising the legs, lowering the legs, tilting the bed body forward (≥12°), tilting the bed body backward (≥12°), overall lifting and lowering, sitting up, and lying down. Patients can adjust the angle and height of the bed surface by themselves, effectively improving their quality of life and reducing the labor intensity of the nursing staff. Elevating the height of the bed surface is convenient for taking care of patients. The front and rear tilting of the bed body can change the blood circulation of the head and legs of the human body, which is beneficial for the recovery of patients.

6. Bed function: Includes functions such as raising the back, lifting the legs, tilting the bed frame forward, tilting the bed frame backward, adjusting the bed surface height, and installing the infusion stand.

7. 4 sets of adjustable ABS lifting guardrails. When the guardrails are lowered, it is convenient for patients to get on and off the bed; at the same time, it is also convenient for cleaning and disinfection.

8. The casters are equipped with 4 centrally controlled silent and luxurious plastic-covered casters. When moving, there is no noise. After stepping on the brake lever, all four wheels will brake simultaneously. The operation is convenient and fast, and the parking is stable.

9. The bed surface is made of a single-piece stamped material. It is both aesthetically pleasing and luxurious. The middle part is concave to prevent the patient from sliding, and it features ventilation grooves and ventilation holes, which facilitate the ventilation of the mattress and prevent moisture.

10. 8 cm thick mattress is made of natural coir and high-quality sponge. This environmentally friendly and pollution-free mattress is adopted.

Bed packaging dimensions: 203*95*46 cm  Four small guardrails packaging dimensions: 72*30*34 cm
